画框还是智能显示?这款带电池的电子墨水显示屏两者都能胜任。Picture frame or smart display? This e-ink display with battery can do both


AI free token/AI免费积分

使用电子墨水和丰富功能:这款新显示器既可无线使用,又依赖电子墨水,并包含自己的处理芯片。它还支持 WiFi,创建自定义界面的流程应被设计为简单易用。

The reTerminal E1003 can be powered via a battery

reTerminal E1003 电子纸显示器是一款新产品,但它并非主要设计用于与 PC 连接。相反,它适用于电子画框或智能显示器等场景,例如作为智能家居系统的界面。屏幕对角线为 10.3 英寸,分辨率为 1,404 x 1,872 像素。它支持 16 级灰度,但无法显示彩色内容。从理论上讲,这款产品可以作为画框使用,因为黑白艺术品也可以很好地展示。

它配备了一块 3,000 mAh 的电池。根据官方数据,一次充电可维持长达 6 个月的续航时间。在这一点上,电子纸技术具有明显优势。该模型还可作为智能家居系统的控制中心,并支持触摸操作。这允许用户在展示艺术作品和显示信息屏幕之间切换,从而避免被单一使用场景限制。

该设备的驱动芯片为 ESP32-S3。凭借标准的固件,其已经兼容 SenseCraft HMI,这意味着可以通过 Web 界面轻松创建此类界面。另外,它也支持通过 Arduino IDE 和 PlatformIO 进行编程。无线方面,它涵盖了 2.4 GHz 频段的 WiFi 以及蓝牙。温度和湿度的测量可以通过相应的传感器直接由 reTerminal E1003 电子纸显示器完成。显示器本身的售价为 160 美元,而支架则需另外支付 20 美元。

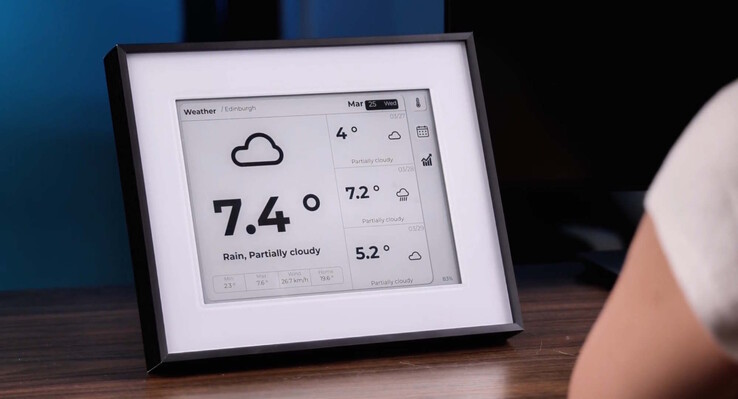

Der reTerminal kommt mit E-Ink-Technologie

With e-ink and extensive capabilities: A new display that can also be used wirelessly relies on electronic ink and includes its own processing chip. WiFi is also supported, and creating custom interfaces is intended to be straightforward.

The reTerminal E1003 can be powered via a battery

The reTerminal E1003 ePaper Display is a new display, though it is not primarily designed for use with a PC. Instead, it is intended for applications such as a picture frame or as a smart display, for example as an interface for a smart home system. The display itself measures 10.3 inches diagonally and has a resolution of 1,404 x 1,872 pixels. It supports 16 levels of grayscale but cannot display color content. In principle, the model can be used as a picture frame, as black-and-white artwork can also be effectively displayed.

It is equipped with a 3,000mAh battery. The specified battery life is up to 6 months on a single charge. In this respect, e-paper technology is particularly advantageous. The model can also serve as a control hub for a smart home system and supports touch input. This allows switching between displaying an artwork and showing an information screen, so users are not limited to a single use case.

The device is powered by an ESP32-S3 processor. With the standard firmware, it is already compatible with SenseCraft HMI, allowing such interfaces to be created easily via a web interface. Programming is also supported via the Arduino IDE and PlatformIO. It supports WiFi in the 2.4 GHz band as well as Bluetooth. Temperature and humidity can be recorded directly by the reTerminal E1003 ePaper Display using appropriate sensors. The display itself is priced at $160, with an additional $20 for the frame.

Der reTerminal kommt mit E-Ink-Technologie
