VA3200-QAA/ED312TT2-31.2寸-2560 x 1440-16灰阶-并口-玻璃-电子墨水屏规格
VA3200-QAA/ED312TT2
‧31.2寸大尺寸，适用于大型电子看板等应用
‧反射式技术，不需背光模組，户外也清晰可视
‧超低耗电量，长期总持有成本低
‧画面恒常显示
主动矩阵电子纸显示器模組，使用E Ink Pearl电子墨水薄膜，31.2寸大尺寸，特别适用于交通信息看板、校园导引或信息看板等大型电子看板应用。
2560x1440分辨率，支持黑白及16灰度，玻璃基板。
| 尺寸(inch) | 31.2 |
|---|---|
| 分辨率(HxV) | 2560 x 1440 |
| 有效显示区域(mm) | 691.20 x 388.80 |
| 外观尺寸(mm) | 697.20 x 402.80 |
| Dpi | 94 |
| 电子墨水薄膜 | Pearl |
| 刷新时间 | 980ms |
| 背板 | Glass |
| 总厚度 | 0.805mm |
| 总重量 | 494g |
| 灰度 | 16 |
| 前光 | N |
| 表面处理 | Hard Coat |
VA3200-QAA is a reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It has 31.2” active area with 2560 x 1440 pixels, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file it used.
31.2″ display panel is suitable for various applications, e.g. bus stop, museum etc…
Product Description
Features
- ● High contrast TFT reflective/electrophoretic technology
- ● 2560 x 1440 resolution
- ● Ultra wide viewing angle
- ● Ultra low power consumption
- ● Bi-stable
- ● Commercial temperature range and landscape and portrait mode
- ● Package content
- ● Glass substrate
Package content
This demo kit contains the following:
- ● 31.2˝ ePaper Display (VA3200-QAA)
SPECIFICATION
| Parameter | Specifications | Unit |
| Screen Size | 31.2 | Inch |
| Backplane Type | Glass | |
| Display Resolution | 2560 (H) × 1440(V) | Pixel |
| Active Area | 691.2 (H) × 388.8(V) | mm |
| Pixel Pitch | 0.27(H) × 0.27(V) | mm |
| Pixel Configuration | Square | |
| Outline Dimension | 697.2(W) × 402.8(H) × 0.805(D) | mm |
| Module Weight | 494 | g |
| Number of Gray | 16 Gray Level (monochrome) | |
| Display Operating Mode | Reflective mode |
此款屏幕终端产品介绍:

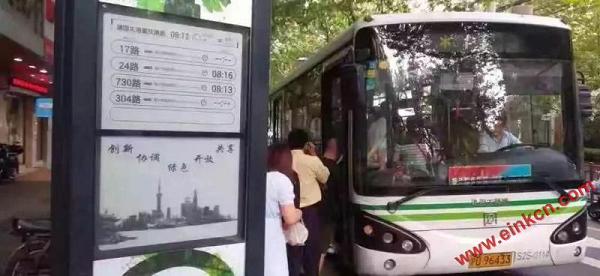

上海公交报站系统
