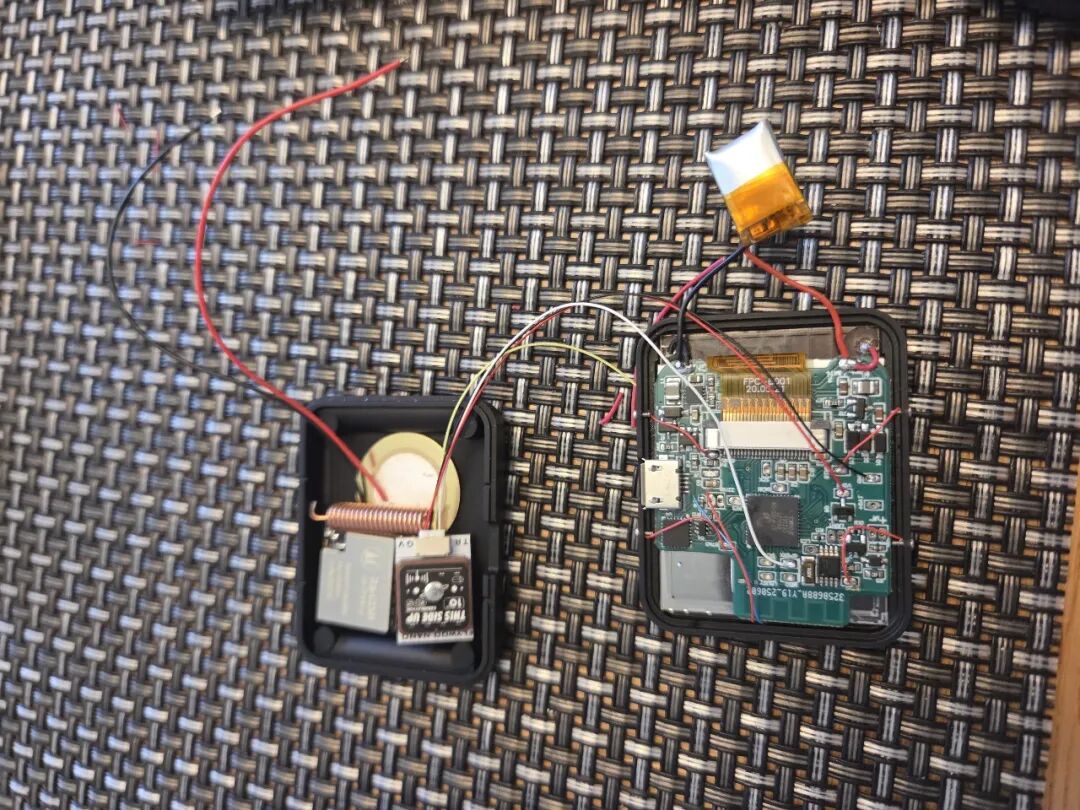

LightInk,一款基于ESP32-PICO-D4 SiP的开源太阳能供电的电子墨水屏手表,灵感来自90年代的太阳能数字手表。它配备1.54inch电子纸显示屏,支持Wi-Fi、蓝牙、LoRa和GPS,使用100mAh电池供电。

Github上好玩的嵌入式项目——基于ESP32-PICO-D4的太阳能供电的电子墨水智能手表Github上好玩的嵌入式项目——基于ESP32-PICO-D4的太阳能供电的电子墨水智能手表

Github地址

https://github.com/DarkZeros/LightInk

开源了软硬件所有资料(包括原理图,PCB工程文件,BOM,所有固件代码),以及结构图纸。

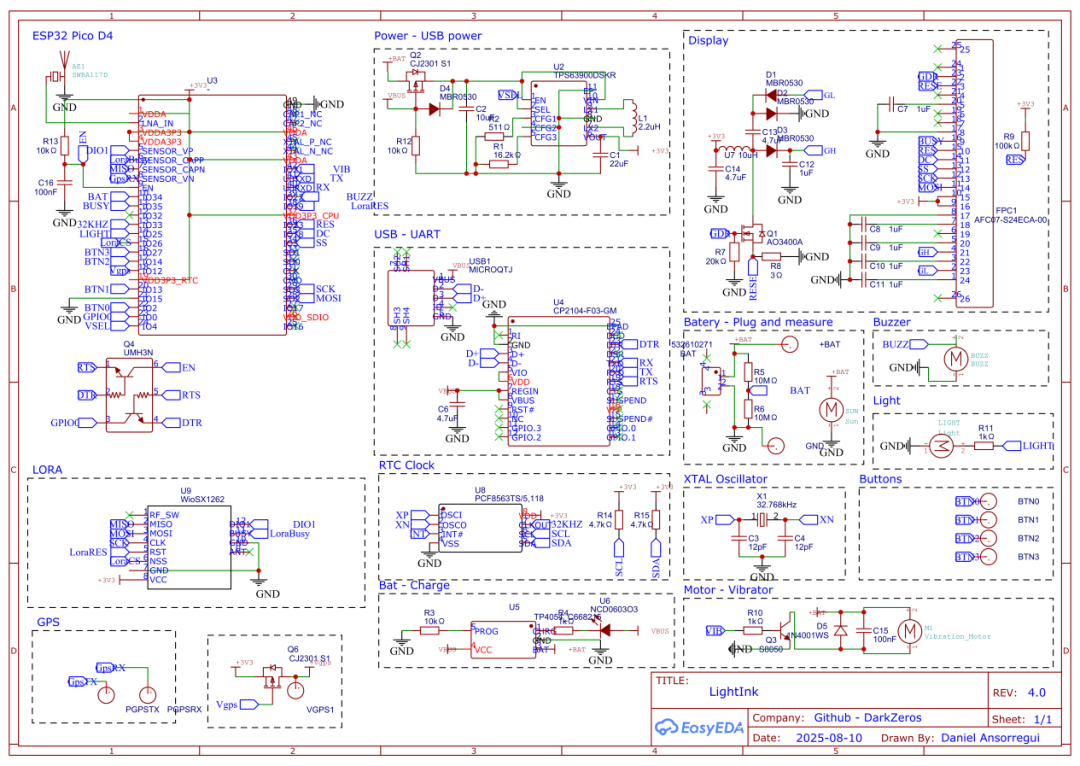

原理图:

Github上好玩的嵌入式项目——基于ESP32-PICO-D4的太阳能供电的电子墨水智能手表

LightInk 项目的主要目的是打造一款功能齐全且基础的电子墨水屏手表,可通过太阳能电池供电。该项目需要特定的硬件,并基于“Watchy”的概念,但不同之处在于:

  • 采用更优的 TPS63900 电源(2.6/2.9V)

  • 效率更高、电压更低,且支持动态调节

  • 这足以在任何条件下为 ESP32/RTC/E-Ink 和 WiFi 供电

  • 不配备加速度计(功耗过高!)

  • 不支持电池充电,完全由太阳能电池供电!

  • 设有压电扬声器接口

  • 设有LED灯接口

  • 有电容式触摸接口



项目目标包括:

  •  基础UI功能与小工具

  •  超低功耗 <0.5 mAh/天!

  •  功能特性

  •  深度睡眠Lambda

  •  振动

  •  扬声器

  •  时间校准

  •  手动校准漂移并调整

  •  目标1ppm(当前10ppm)

  •  通过温度调节漂移?

  • NTP同步 - Wi-Fi - AutoZone

  • 电池供电支持

  • 电池监测与估算

  • 自动省电

  • 夜间模式,节省电量

  • 触控设置

  • 电容式触控功能

  • 触控配置 - 灵敏度

  • 表盘配置

  • 月相指示器

  • 日出日落

  • 潮汐

  • 图片等

  • 可配置闹钟

  • 蓝牙 - 配套应用?

  • 同时保持超低功耗特性! :)



Github上好玩的嵌入式项目——基于ESP32-PICO-D4的太阳能供电的电子墨水智能手表

Original link: https://mp.weixin.qq.com/s/d8Vyny87dfC4wbIGV40pfQ

LightInk, a solar-powered electronic ink watch based on ESP32-PICO-D4 SiP, inspired by 1990s solar digital watches. It features a 1.54inch e-paper display, supports Wi-Fi, Bluetooth, LoRa, and GPS, and is powered by a 100mAh battery.

A Fun Embedded Project on GitHub — Solar-Powered Smart Watch with ESP32-PICO-D4 and E-Paper DisplayA Fun Embedded Project on GitHub — Solar-Powered Smart Watch with ESP32-PICO-D4 and E-Paper Display

GitHub address

https://github.com/DarkZeros/LightInk

All hardware and software materials are open source (including schematics, PCB project files, BOM, and all firmware code), as well as structural drawings.

Schematics:

A Fun Embedded Project on GitHub — Solar-Powered Smart Watch with ESP32-PICO-D4 and E-Paper Display

The main goal of the LightInk project is to create a fully functional, fundamental e-ink watch that can be powered by a solar panel. The project requires specific hardware and is based on the concept of "Watchy," but differs in the following ways:

Utilizes a superior TPS63900 power supply (2.6/2.9V)

More efficient, lower voltage, and supports dynamic regulation

This is sufficient to power the ESP32/RTC/E-Ink and WiFi under any conditions

Does not feature an accelerometer (too high power consumption!)

Does not support battery charging — is completely powered by a solar battery!

Includes a piezoelectric speaker interface

Includes an LED light interface

Includes a capacitive touch interface

Project goals include:

Basic UI functions and widgets

Ultra-low power consumption <0.5 mAh/day!

Functional features

Deep sleep Lambda

Vibration

Speaker

Time calibration

Manually calibrate drift and adjust

Target 1ppm (currently 10ppm)

Adjust drift via temperature?

NTP synchronization - Wi-Fi - AutoZone

Battery-powered support

Battery monitoring and estimation

Automatic power saving

Night mode to save power

Touch settings

Capacitive touch functionality

Touch configuration - sensitivity

Dial configuration

Moon phase indicator

Sunrise and sunset times

Tides

Images, etc.

Configurable alarms

Bluetooth - Companion app?

While maintaining ultra-low power characteristics! :)
